Adversary Infrastructure Report 2020: A Defender’s View

Click here to download the complete analysis as a PDF.

_Recorded Future’s Insikt Group® conducted a study of malicious command and control (C2) infrastructure identified using proactive scanning methods throughout 2020. All data was sourced from the Recorded Future® Platform. Data in this report is as of November 15, 2020. _

Executive Summary

Recorded Future tracks the creation and modification of new malicious infrastructure for a multitude of post-exploitation toolkits, custom malware frameworks, and open-source remote access trojans. The effort has been ongoing since 2017, when Insikt Group created methodologies to identify the deployments of open-source remote access trojans (RATs). Recorded Future collected over 10,000 unique command and control servers during 2020, across more than 80 families.

Background

Lead time in identifying malicious servers can be a proactive measure in neutralizing threats. Before a server can be used by a threat actor, it has to be acquired, either via compromise or legitimate purchase. Then, the software must be installed, configurations must be tuned, and files added to the server. The actors must access it via panel login, SSH, or RDP protocols, and then expose the malware controller on a port to allow the data to transfer from the victim and to administer commands to infections. Only then can the server be used for malicious purposes.

However, in exposing, configuring, and accessing the server, the adversary leaves behind their fingerprints; sometimes in software deployed on the server, sometimes via the login panel, sometimes via SSL registration patterns. This creates an opportunity for detection, which can occur prior to a phishing email being sent or an implant getting compiled.

Similarly, such a collection can illuminate many things about adversaries. Seeing how many command and control (C2) servers are created can help one quantify the breadth of an actor’s campaigns. Comparing such data to reports of intrusions related to those families can identify how many intrusions get caught, and potentially how many events remain unknown in the public domain. Finally, it can provide novel indicators and intelligence that is otherwise not available in the public domain.

Threat Analysis

The most commonly observed families were dominated by open-source or commercially available tooling. Detections of unaltered Cobalt Strike deployments (the pre-configured TLS certificate, Team Server administration port, or telltale HTTP headers) represented 13.5 percent of the total C2 servers identified. Metasploit, and PupyRAT represented the other top open-source command and control servers identified by Recorded Future.

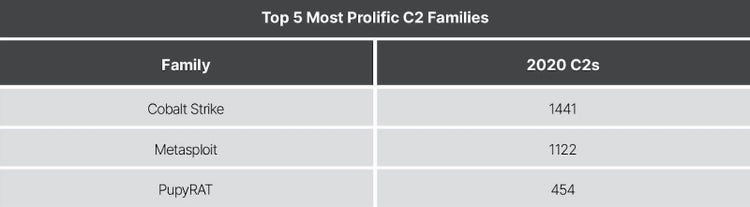

_**Figure 1**: Top detected malware families by command and control infrastructure (These numbers include preexisting servers that were still up at the time of analysis and do not represent newly created servers in 2020)._

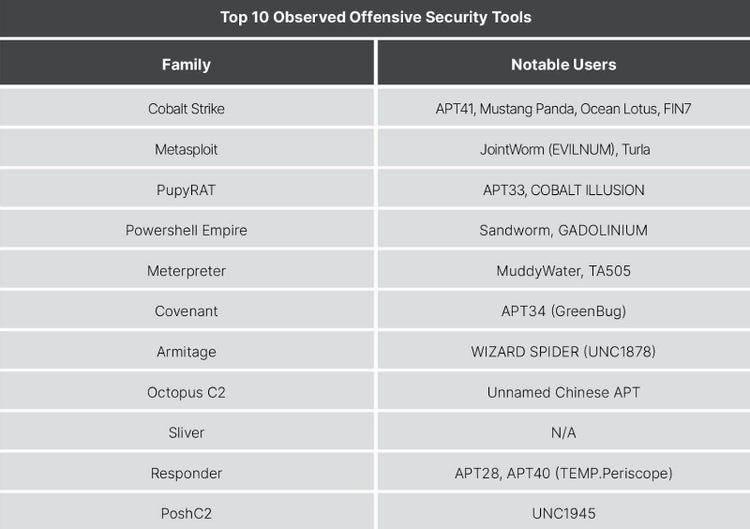

The top 10 most common offensive security tools (OST), based on the number of observed C2 servers, included new and old families. Notably, Recorded Future observed 393 Cobalt Strike servers that were outside of common detection mechanisms; we assess these detections only represent a portion of total Cobalt Strike use. PWC and Blackberry found that a majority of Cobalt Strike deployments for which a payload was observed used cracked or trial versions of the commercially available tool.

_**Figure 2**: Example open source malware families tracked by Recorded Future (These numbers include preexisting servers that were still up at the time of analysis and do not represent newly created servers in 2020)._

Nearly all of the OSTs detected by Recorded Future have been linked to APT or high-end financial actors. The ease of access and use of these tools, mixed with the murkiness of potential attribution makes them appealing for unauthorized intrusions and red teams alike. This, in addition to the adoption of these frameworks by ransomware actors, makes their detection a priority.

Host(er)s With the Most (C2s)

Recorded Future C2 data allowed us to identify the most popular hosting providers for C2 servers. We observed the creation of C2 infrastructure on 576 hosting providers, representing only a small percentage of the total AS operators, which exceeds 60,000 providers.

The most-used ASNs are undoubtedly linked to the size of the provider, not necessarily implying that they are bulletproof hosting providers or complicit in adversary actions. The most used tooling can be considered dual use, increasing the volume of these servers on more reputable AS ranges.

Amazon.com, Inc., operating out of the United States, hosted the most C2s of an ASN observed by Recorded Future. They accounted for 471 individual command and control servers (roughly 3.8 percent). The most commonly observed family on Amazon.com, Inc. was Cobalt Strike, with 167 servers identified. The next largest was Digital Ocean, also operating out of the U.S.

Servers in the United States that accounted for other top hosting providers can be seen below. The deployment of Cobalt Strike and Metasploit controllers on these providers is not indicative of malpractice or negligent hosting, but is more likely due to authorized red teams using these tools on cloud infrastructure.

_**Figure 3**: Hosting providers who hosted the most command and control servers during 2020._

There is less predictability in the most common ASNs used across OSTs, as they are readily available for red team exercises and unauthorized intrusions.

_**Figure 4**: Top hosting providers for each OST._ Publicly available tooling published as remote access trojans (RATs) also had limited predictability of its favored hosting providers.

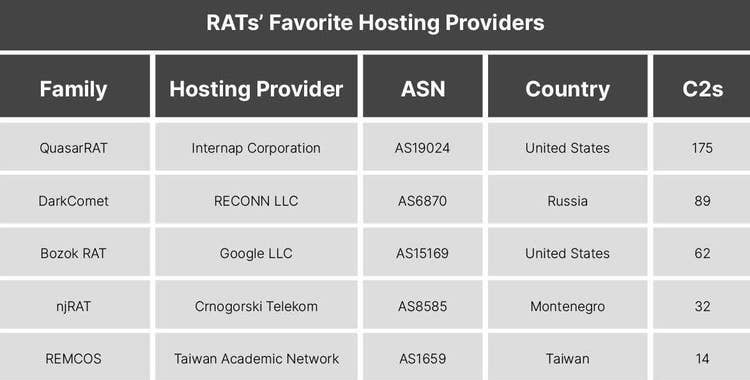

_**Figure 5**: Top hosting providers for each RAT._

Recommendations

• Proactive detection creates an advantage for defenders, giving them preparatory time to ensure additional file- and network-based detections are in place.
• Recorded Future clients can rapidly identify infections by detecting IP addresses found in the Recorded Future Command and Control List.
• Recorded Future users can query any malware entity, using the source Recorded Future Command and Control List, to conduct similar research of their own.
• Employ detection-in-depth for common open source tooling via correlation searches for SIEMs for suspicious behaviors, YARA for suspicious file contents, and SNORT for suspicious or malicious network traffic.
• The detections for each family show the increased use of open source tools beyond just the families that get major publicity. These other families should be prioritized for network and host-based detection in enterprise environments.
• The adoption of lesser-known open source tooling such as OctopusC2, Mythic, and Covenant by APT and criminal adversaries highlights the need for threat intelligence practitioners to track and evaluate use of these tools.

Outlook

Over the next year, Recorded Future expects further adoption of open source tools that have recently gained popularity, specifically Covenant, Octopus C2, Sliver, and Mythic. Three of these tools had graphical user interfaces, making them easier to use for less experienced operators, and all four have verbose documentation on their uses. These tools had rapid adoption after their releases and were used by both red teams and unauthorized actors. Despite expected gains by these open source frameworks, Cobalt Strike will very likely maintain its lead atop our detections, due to its ubiquity and utility. Since the source code of the framework has leaked, we anticipate even further adoption of Cobalt Strike by all facets of threat actors.

We also anticipate that, despite various publications detailing detection methodologies, espionage-oriented actors are less likely to modify their server-side components. Threat actors engaged in state-sponsored espionage will use whatever tooling necessary to achieve their goals. If targeted organizations are unable to defend their network from tooling that has been disclosed, threat actors have little motivation to pursue new capabilities. Financially motivated actors using custom tooling, however, are very likely to respond to detections by either rebuilding their components (as was the case with BazarBackdoor and TrickBot actors) or introduce entirely new tooling (which FIN7 is known to do).

Due to these factors, it is important to implement security controls and mitigations against these malware families. While proactive detection of the command and control servers can help prevent incidents, defense-in-depth approaches are recommended to detect intrusion activity on the victim host, at the perimeter, and on the wire.
